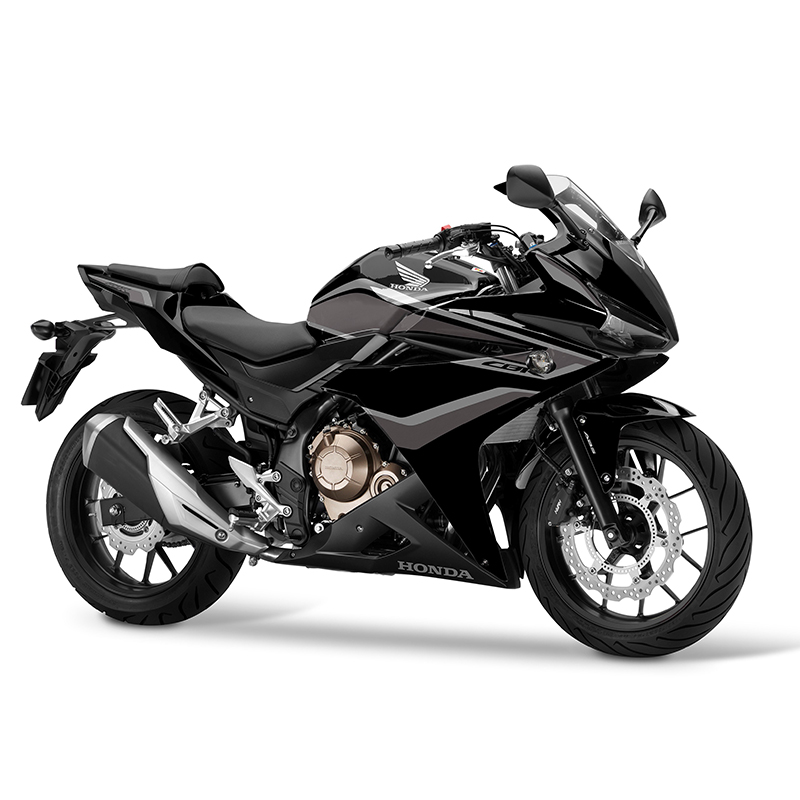

CBR500RA
IDEAL LAMS PACKAGE
The CBR500R’s performance will give anyone looking for their first sportsbike an exhilarating ride on a twisty, winding road – or even race track. It works equally well in urban environments and is a motorcycle designed to be ridden, and thoroughly enjoyed, by people of all shapes and sizes.
Perfect for learner riders, the CBR500R is LAMS approved. The 500cc liquid-cooled parallel-twin DOHC engine is thoroughly modern in design and produces a broad power spread for enjoyable and economical riding.
SPORTS INSPIRED
Diamond-shaped 35mm steel tube frame is lightweight and rigid for responsive sport handling. Stout 41mm front fork returns a plush yet controlled ride while sophisticated Pro-Link single-shock rear suspension offers nine-stage spring preload adjustability.
ENGINE & PERFORMANCE
Four-valve cylinder head design uses lightweight rocker-arm valve actuation with shim-type valve adjustment.
Programmed Fuel Injection (PGM-FI) continuously monitors several variables to ensure the correct fuel mixture is delivered for the existing riding and atmospheric conditions for crisp throttle response throughout a wide variety of riding conditions.
CHASSIS & SUSPENSION
ABS as standard for enhanced braking characteristics in less than ideal conditions. With LED lighting, a larger fuel tank, adjustable front forks and a satisfying growl from a redesigned exhaust system, the CBR500R means business.
Instrument display features speedometer, tachometer, odometer/A&B tripmeters, fuel gauge, clock, mpg, average fuel consumption, and current fuel consumption.
| ENGINE | |
| ENGINE TYPE | 471cc Liquid-Cooled, parallel twin |
|---|---|
| BORE AND STROKE | 67mm x 66.8mm |
| COMPRESSION RATIO | 10.7 : 1 |
| STARTER | Electric |
| CARBURATION | PGM FI |
| TRANSMISSION | 6-speed |
| FRAME | |
| DIMENSIONS | 2,080mm x 750mm x 1,145mm |
|---|---|
| WHEEL BASE | 1,410mm |
| SEAT HEIGHT | 785mm |
| GROUND CLEARANCE | 140mm |
| FUEL CAPACITY | 16.7 litres |
| KERB WEIGHT | 194Kg |
| TYRE | |
| FRONT | 120/70ZR - 17M/C |
|---|---|
| REAR | 160/60ZR - 17M/C |
| SUSPENSION | |
| FRONT | Conventional Telescopic, 41mm |
|---|---|
| REAR | Prolink mono with 9 stage Preload adjuster, steel square pipe swingarm |
| BRAKES | |
| FRONT | Single Wavy Disc, 320mm, 2 POT calliper (ABS) |
|---|---|
| REAR | Single Wavy Disc, 240mm, 1 POT calliper (ABS) |
| NOTES | |
| COLOUR | Millennium Red, Lemon Ice Yellow, Black/Candy Energy Orange,Matte Gunpowder Black Metallic |
|---|---|
| WARRANTY PERIOD | 24 Months |
| IMAGES | Please note images show overseas models |
